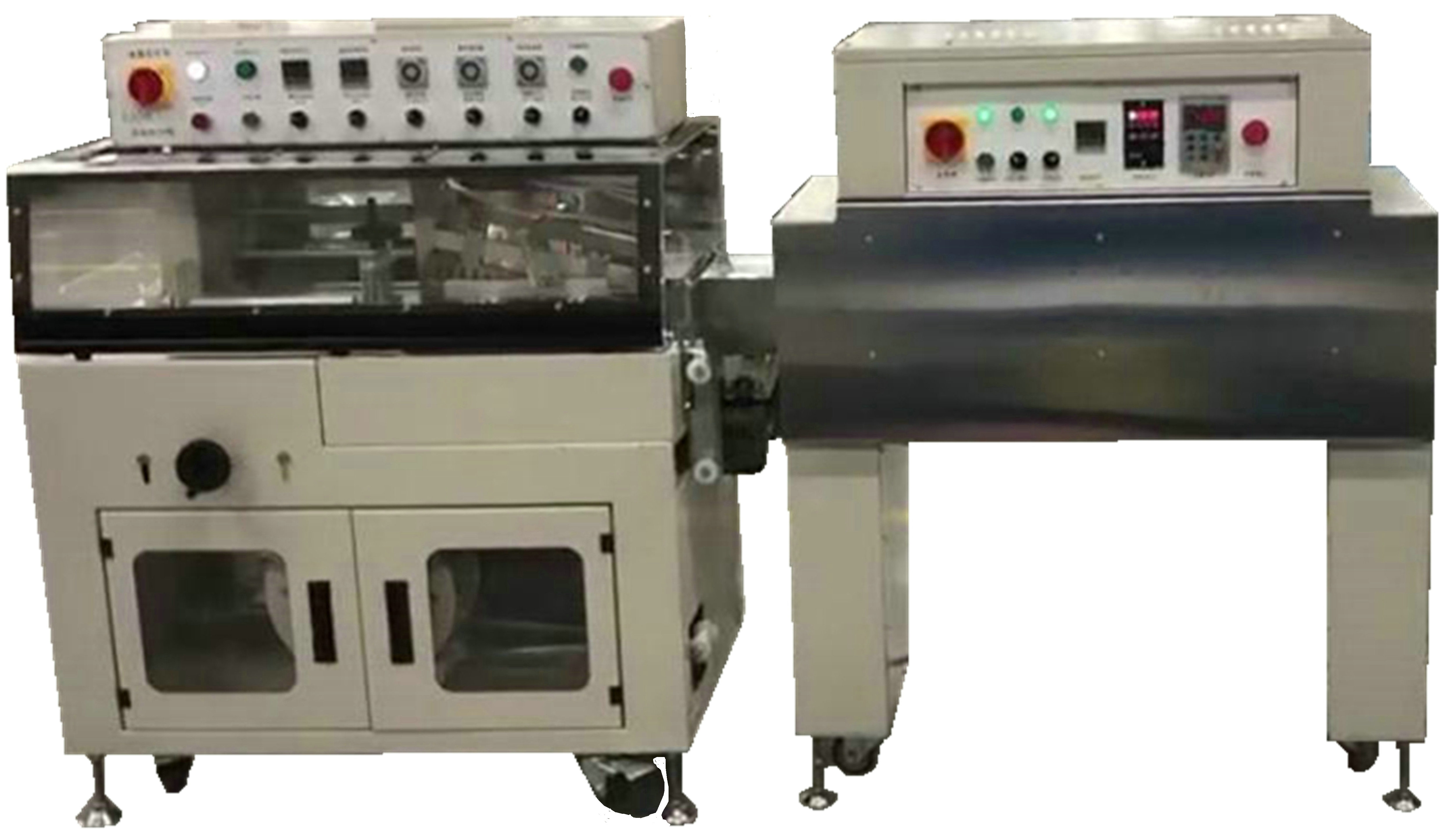

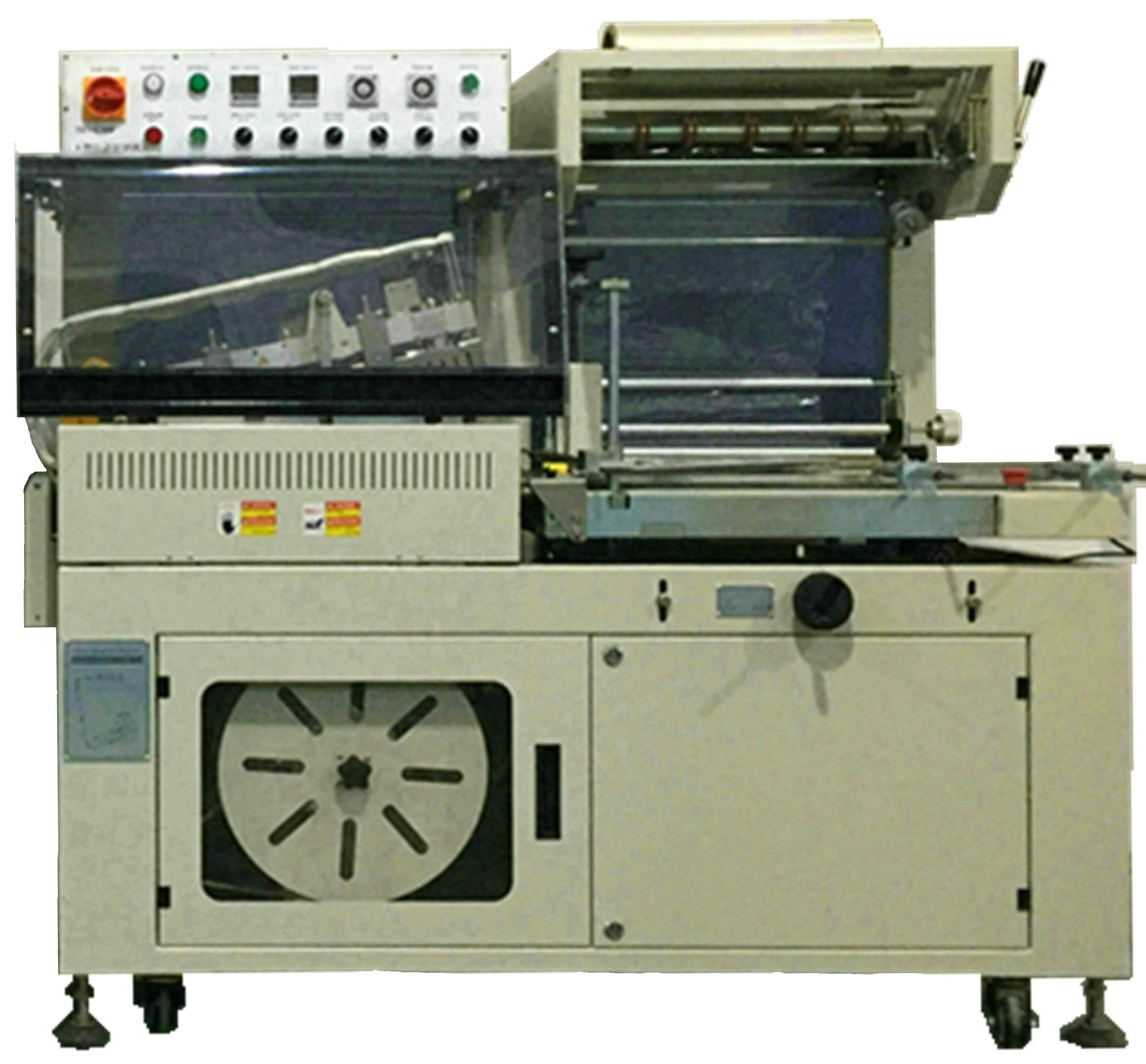

Features:
1. High efficiency
2. PLC automatic program control
3. Safe protection and alarm
4. Exact seal temperature control
5. High temperature resistance and sticky free sealing knife
6. Automatic film feeding and length count
7. Suitable for small size products with kissing function
8. Save energy outstandingly
9. Seal Polyolefin Shrink film and Cross-Linked Shrink film well
Applications: software, food, cosmetics, medical products, wooden floor, ceramics, beverage, etc.
| Model | L automatic sealer |
|---|---|
| Machine size outside | (L)1617mm x (W)740mm x (H)1490mm |
| Sealing size | (L) 500mm x (W)400mm x (H)120mm (the max height of product) |
| Height of convey | 800mm + 50mm |
| Convey speed | Input speed: 0-16M/Min(before sealing) Output speed: 0-16M/Min(after sealing) |
| Film roll unwind speed | 0-16 M/Min |
| Speed of film trim winder | 0-16.3 M/Min |
| Packing speed | 15-30 packs/minute |
| Seal temperature | 110 ℃ (230℉) - 160 ℃(320℉) Different materials need different seal temperature. |
| Seal time | One second usually, but please adjust according to different products. |
| Power supply | Single phase AC 200/220V 4P 50/60 Hz |
| Total Power | 3 KW |
| Air pressure | 5KG/CM² 37L/Min |
| Materials | PE, OPP, POF |

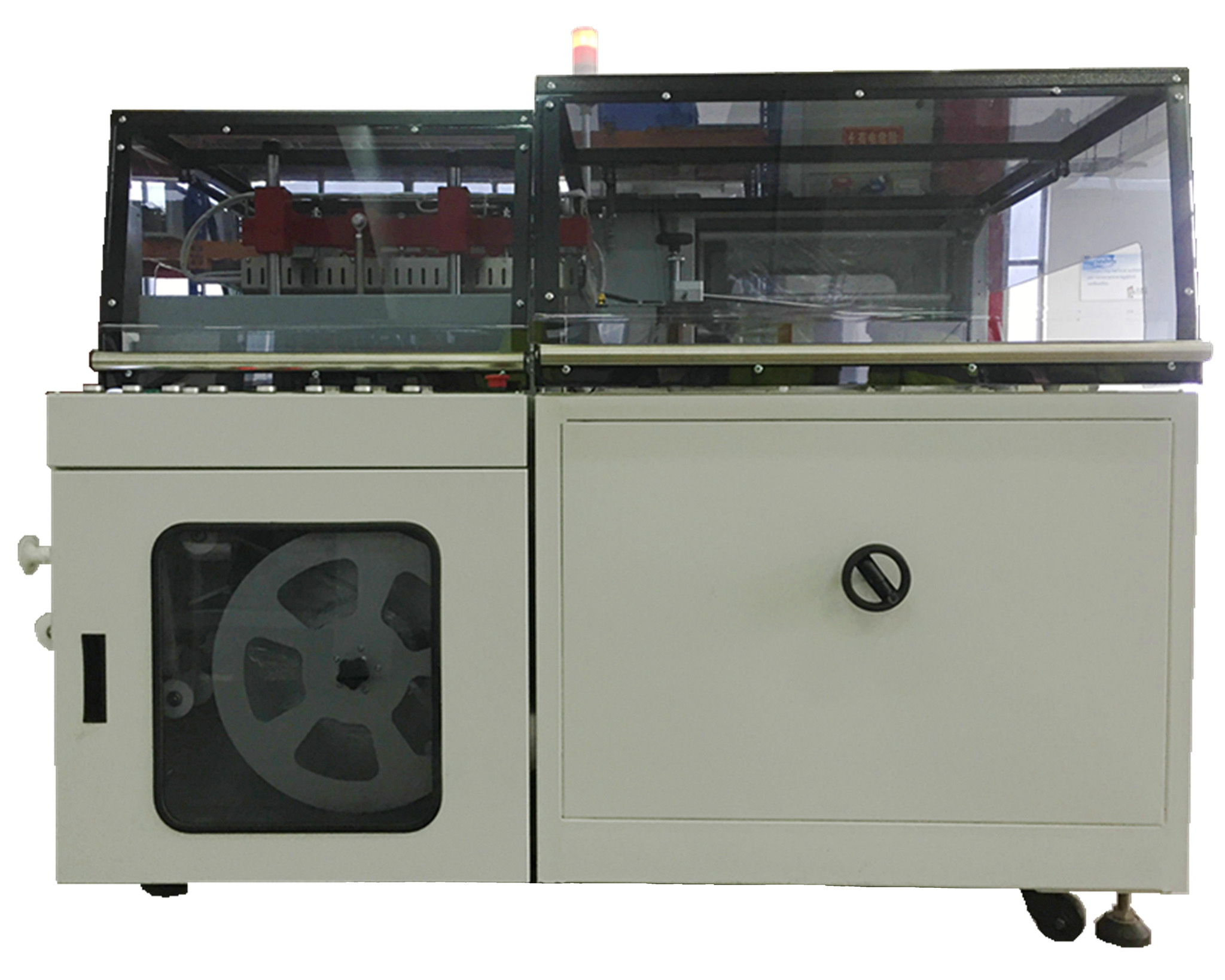

Features:
1. High efficiency
2. Safe protection and alarm
3. PLC automatic program control
4. Wrinkle free near seal line
5. High temperature resistance and sticky freesealing
knife
6. Vertical driven seal and automatically adjustmentfor
seal line location
7. Suitable for large products of height between 120mm
and 180 mm.
8. Save energy outstandingly.
9. Seal Polyolefin Shrink film and Cross-Linked Shrink film well.
Applications: single pack or multipack of ceramics, food, electrical equipment, printed box, medical products, etc.
| Model | L vertical sealer |
|---|---|
| Machine size outside | 1850mm(L) x 1350mm(W) x 1300mm(H) |
| Sealing size | 500mm(L) x 400mm(W) x 180mm(H)(the max height of product) |
| Height of convey | 800mm + 50mm |
| Convey speed | Input speed: 0-20M/Min(before sealing) Output speed: 0-20M/Min(after sealing) |
| Film roll unwind speed | 0-20 M/Min |
| Speed of film trim winder | 0-20.3M/Min |
| Packing speed | 15-40 packs/minute |
| Seal temperature | 110 ℃ (230℉) - 160 ℃(320℉) Different materials need different seal temperature. |
| Seal time | One second usually, but please adjust according to different products. |
| Power supply | Single phase AC 200/220V 4P 50/60 Hz |
| Total Power | 3 KW |
| Air pressure | 5KG/CM² 37L/Min |
| Materials | PE, OPP, POF |
Features:
1. Special for much long and high products
2. PLC automatic program control
3. Safe protection and alarm
4. Exact seal temperature control
5. High temperature resistance and sticky free sealing
knife
6. Easy to connect production line
7. Changeable for seal line location
8. Seal Polyolefin Shrink film and Cross-Linked Shrink film well.
Applications: wooden floor, aluminum roll, long lamps, door, windows, ironing board, ladder, hardware and sports.
| Model | Intermittent Side Sealer (L) |
|---|---|
| Machine size outside | 2090mm(L) x 1546mm(W)x 1332mm(H) |
| Sealing size | 450mm(W) x 240mm(H) x (L)(no length limitation) |
| Height of convey | 800mm + 50mm |
| Convey speed | Input speed: 0-50M/Min (before sealing) Output speed: 0-50M/Min (after sealing) |
| Film roll unwind speed | 0-50 M/Min |
| Speed of film trim winder | 0-50 M/Min |
| Packing speed | 20-60 packs/minute |
| Seal temperature | 110 ℃ (230℉) - 220 ℃(428℉) Different materials need different seal temperature. |
| Seal time | 0.5 second usually, but please adjust according to different products. |
| Power supply | Three phases AC 220V 3P 50/60 Hz |
| Total Power | 3 KW |
| Air pressure | 5-6KG/CM² 37L/Min |
| Materials | PE, OPP, POF |

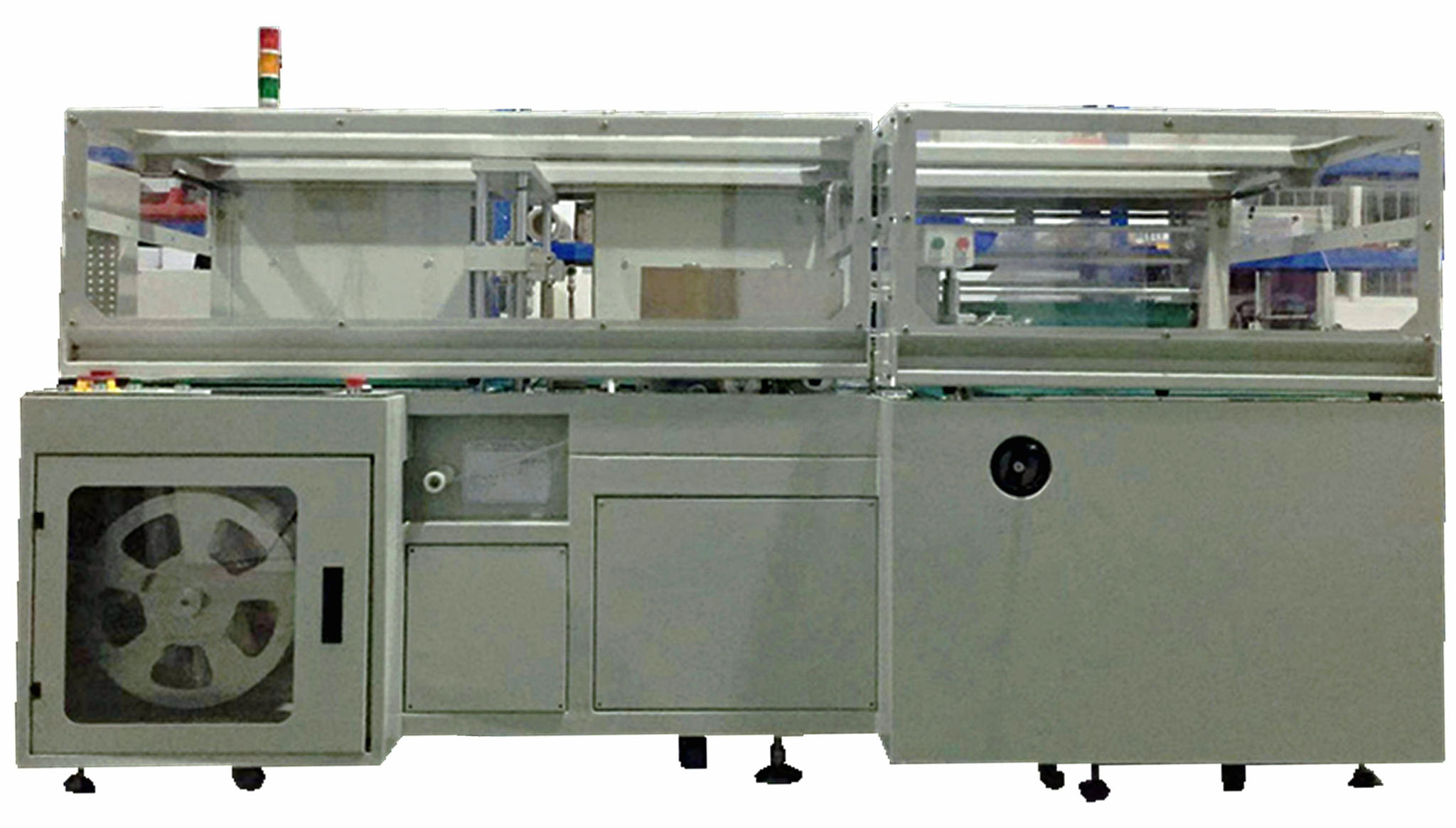

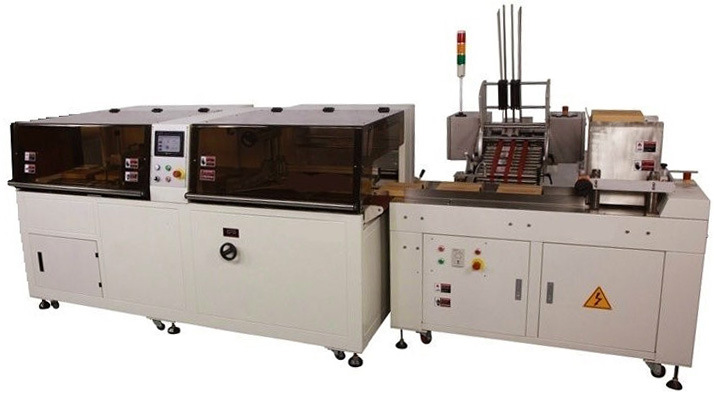

Features:
1. With advanced technology of side seal and continuous motion seal, convey products without non-stop, shrink packing speed increased remarkably. No slip for products and shrink packing result is perfect.
2. Film unwind, sealing process and products output convey by servo motors.
3. Speed for film unwinding and product input is adjusted automatically according to sealing speed.
4. Sealing is paused when products is not conveyed continuously and restart automatic when product input is continuous.
5. Film trim is minimized as 50% of trim for other types shrink wrap machines.
6. Setting data on touch screen and package data for different products is recorded and selected easily.
7. Warning information is indicated on touch screen and adjusted easily.
8. Drive conveyor system is available and can be connected to production line to save labor cost
9. Print film can be sealed exactly as cursor can be identified
10. Belt conveyor or finger pushing conveyor are available for different product size.
11. High speed dispenser is available for high speed packing application.
Applications: CD software, printing materials, photo frame, cosmetics, medical products, tea, coffee, etc.
| Model | Continuous Side sealer |
|---|---|
| Machine size outside | 2400mm(L) x 1450mm(W) x 1320mm(H) |
| Sealing size | 20-400mm(W) x 1-120 mm(H) x (L)no length limitation |
| Height of convey | 800mm + 50mm |
| Convey speed | 0-40 M/Min |
| Packing speed | 60-120 packs/minute |
| Seal temperature | 110 ℃ (230℉) - 220 ℃(428℉) Different materials need different seal temperature. |
| Seal time | 0.5 second usually, but please adjust according to different products. |
| Power supply | Three phases AC 220V 3P 50/60 Hz |
| Total Power | 5.5 KW |
| Air pressure | 5.5 KG/CM² 6 m²/Min |
| Materials | PE, OPP, POF |

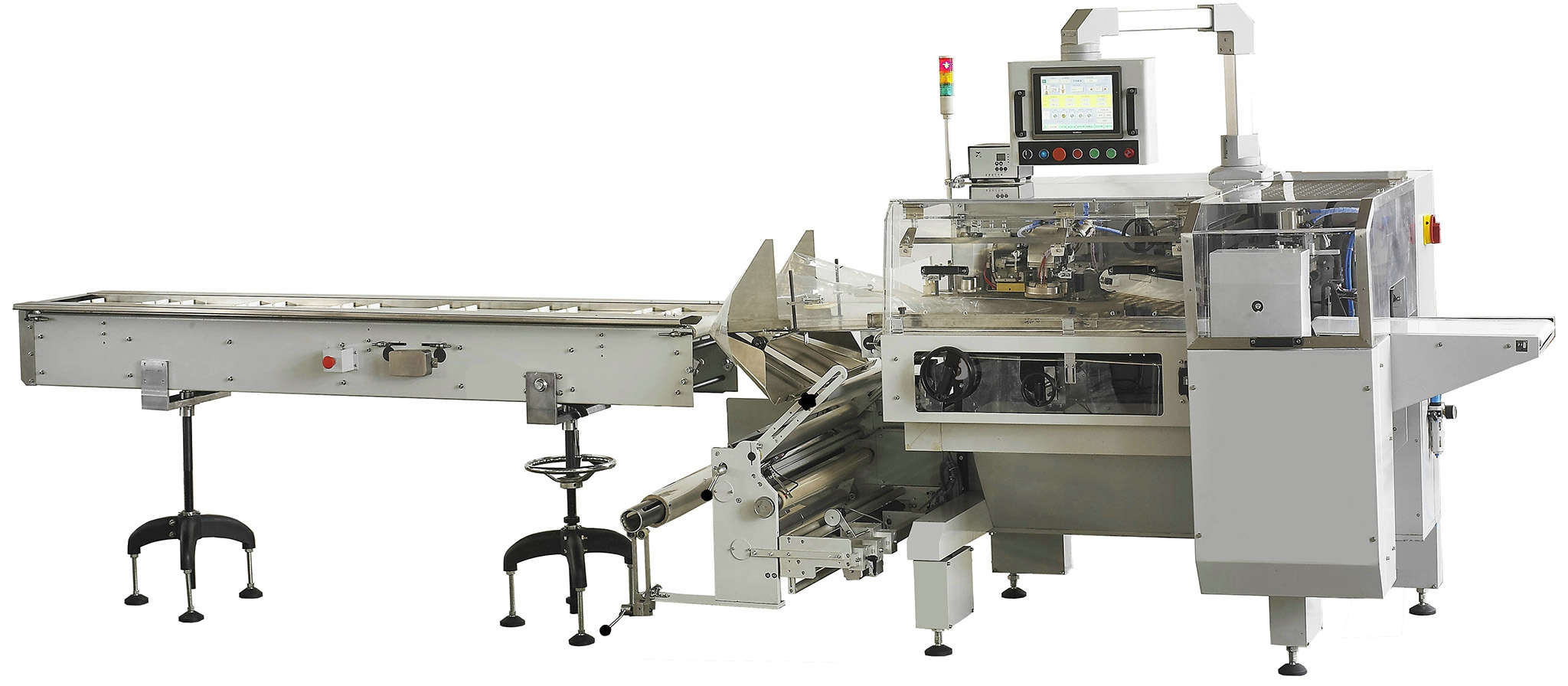

Features:
1. Servo motor control and identify product length and seal.
2. Large color touch screen for easy setting.
3. Running stop automatically without product or film.
4. High efficiency for same size products.
5. Adjustable bag former suitable for different packing size.
6. All electric component passed CE or UL.
Applications: single size pack for software, food, cosmetics, medical products, wooden floor, ceramics.
| Model | Flow Pack Sealer |
|---|---|
| Machine size outside | 5700mm(L) x 1250mm(W) x 1700mm(H) |
| Sealing size | 90-450mm(L) x 10-340mm(W) x 5-70mm(H) |
| Height of convey | 720mm |
| Packing speed | 30-70 packs/minute |
| Seal temperature | 220℃(428℉) to 260℃(500℉) |
| Seal time | 0.5 second usually, but please adjust according to different products. |
| Power supply | One phases AC 220V 50/60 Hz |
| Total Power | 3.6 KW |
| Materials | Polyolefin Shrink film and Cross-Linked Shrink film |

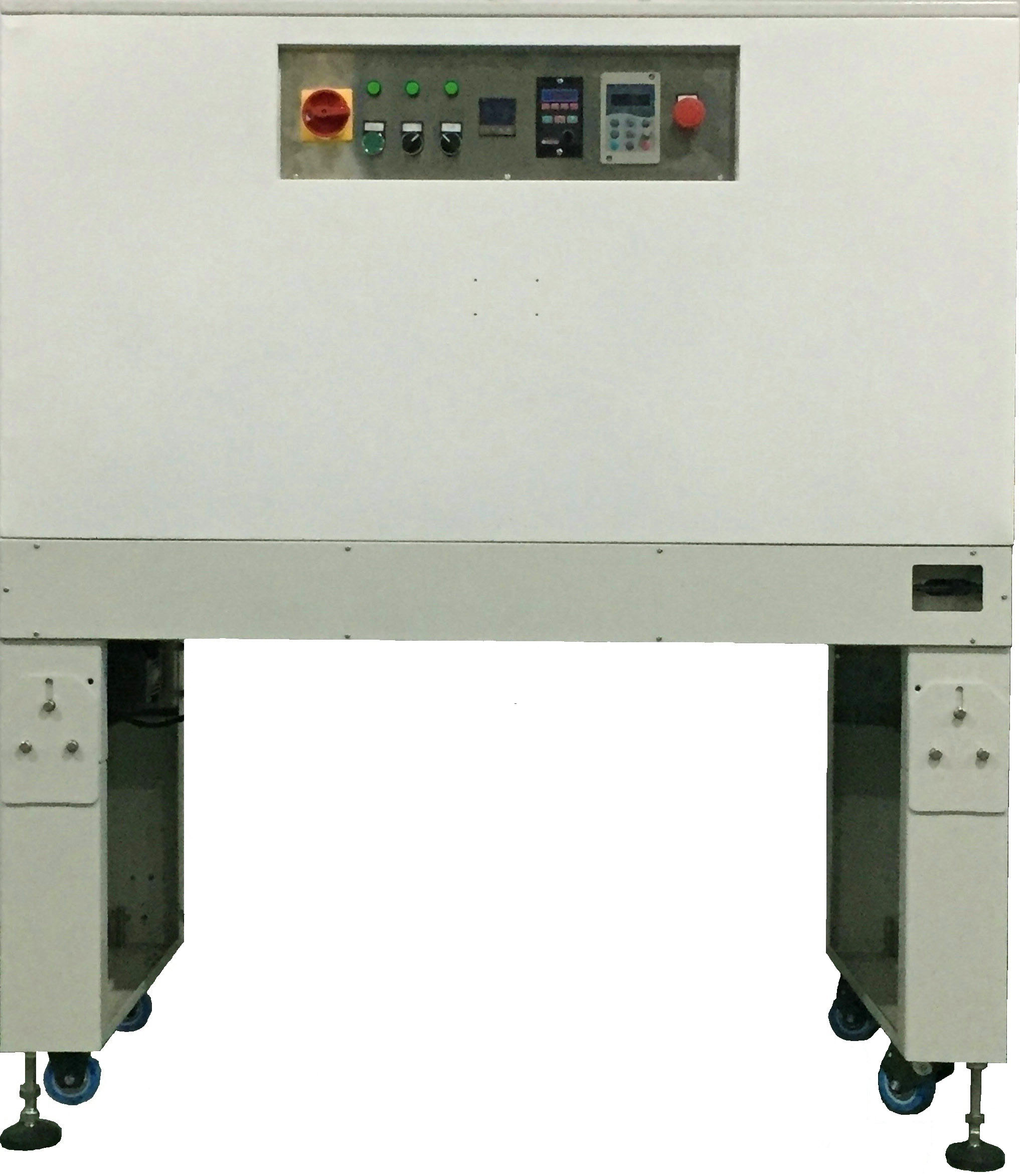

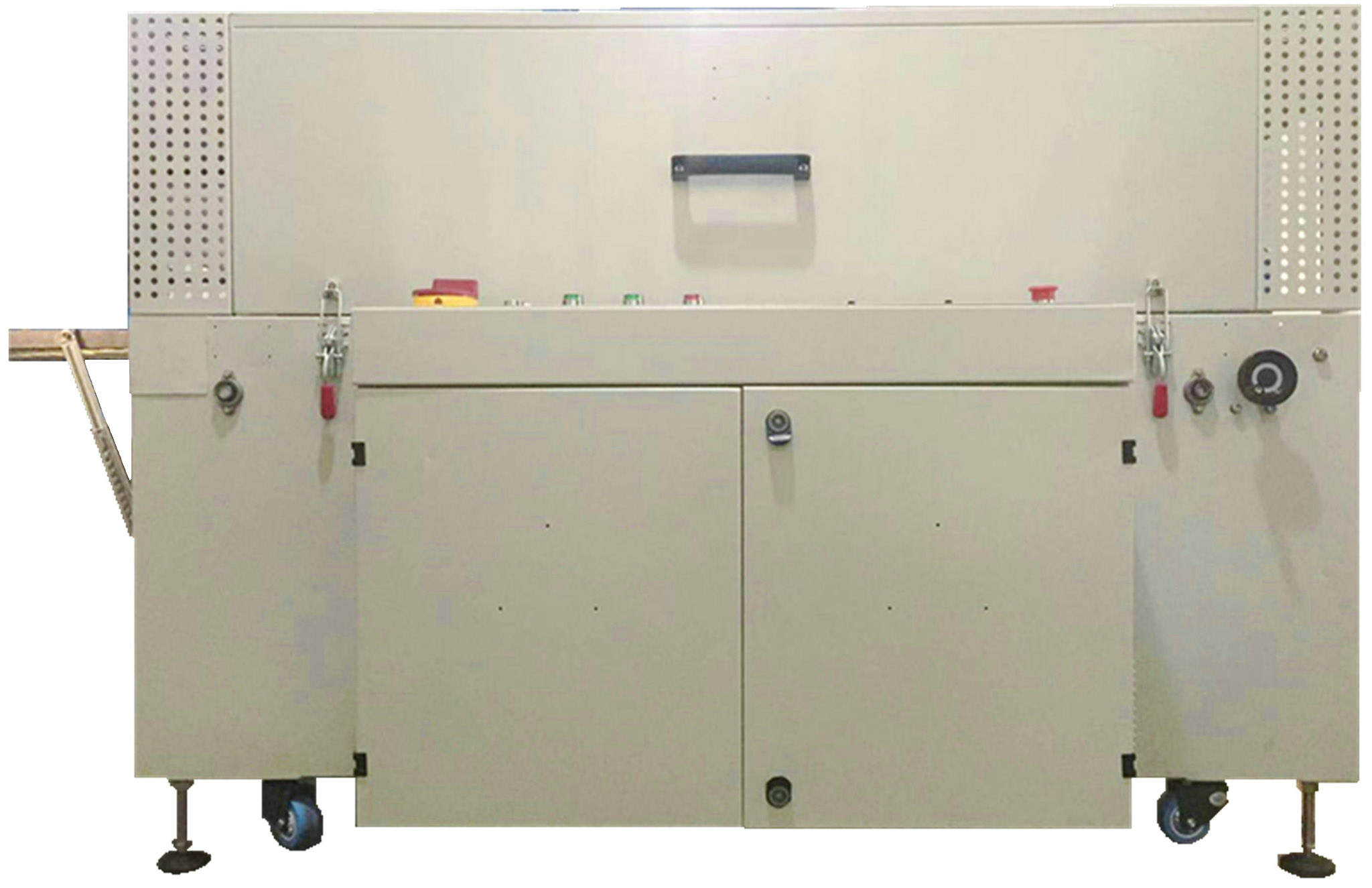

Features:
1. Transparent curtain is for observe shrinking process.
2. Stainless steel roller and silicone tube of high temperature resistance maintain long time use.
3. Special design of shrink tunnel structure improves shrink result much.
4. Hot wind volume and convey speed can be adjusted easily.
5. Energy saves outstandingly.
| Model | Energy-saving Shrink tunnel | Energy-saving Shrink tunnel (L) |
|---|---|---|
| Machine size outside | 1300mm(L) x 680mm(W) x 1449mm(H) | 1672mm(L) x 770mm(W) x 1560mm(H) |
| Tunnel size | 1000mm(L) x 450mm(W) x 250mm(H) | 1300mm(L) x 500mm(W) x 300mm(H) |
| Maximum packing size | 800mm(L) x 400mm(W) x 200mm(H) | 800mm(L) x 400mm(W) x 250mm(H) |
| Convey speed | 0-16 M/Min | 0-20 M/Min |
| Packing speed | 15-30 packs/minute | 15-40 packs/minute |
| Shrink temperature | 110 ℃ (230℉) - 160 ℃(320℉) | 110 ℃ (230℉) - 160 ℃(320℉) |
| Shrink time | Please adjust according to different products. | Please adjust according to different products. |
| Power supply | 3Φ 380V AC 50/60 HZ for heater and air fan. 3Φ 220V AC 50/60 HZ for convey motor |
3Φ 380V AC 50/60 HZ for heater and air fan. 3Φ 220V AC 50/60 HZ for convey motor |
| Power | Conveyor motor:0.09KW Fan motor:0.37KW Heater: 6*1.2KW |
Conveyor motor:0.09KW Fan motor:0.37KW Heater: 6*1.2KW |
| Total Power | 8.0KW | 8.0KW |
| Materials | PE, OPP, POF | PE, OPP, POF |
Features:
1. Transparent curtain is for observe shrinking process.
2. Stainless roller and silicone tube of high temperature resistance maintain long time use.
3. Special design for shrink packaging of long and high products.
4. Hot wind direction, volume and convey speed can be adjusted to achieve good result.
5. Unique design of easy-open top for clean and maintenance easily.
6. Non-driven conveyor helps to keep products and connect production line.
7. Bottom blowing for hot wind in shrink tunnel to save power and increase efficiency.
| Model | Advanced Shrink tunnel |
|---|---|
| Machine size outside | 1800mm(L) x 983mm(W) x 1314mm(H) |
| Tunnel size | 1500mm(L) x 500mm(W) x 300mm(H) |
| Maximum packing size | 1300mm(L) x 400mm(W) x 250mm(H) |
| Convey speed | 40 M/Min |
| Packing speed | 20-60 packs/minute |
| Shrink temperature | 110 ℃ (230℉) - 160 ℃(320℉) |
| Shrink time | Please adjust according to different products. |
| Power supply | 3Φ 380V AC 50/60 HZ for heater and air fan 3Φ 220V AC 50/60 HZ for convey motor |
| Total Power | 13 KW |
| Materials | PE, OPP, POF |
Features:
1. Economical, save space and easy to move
2. Suitable for narrow and long bag
3. Vacuum packaging process automatically
4. Visible for vacuum packaging process
5. Optional bottom plate inside and shape forming parts
6. Optional gas charging function
Applications: tea, coffee, foodstuff, liquid products, electric products
| Model | Table type Vacuum package machine |
|---|---|
| Voltage (V/Hz) | 110 V/60 Hz, 220 V/50Hz, 380 V/50Hz |
| Motor Power (W) | 370 |
| Sealing Power (W) | 150 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| Sealing Bar Number | 1 or 2 |
| Sealing Length (mm) | 280 - 780 |
| Sealing Width (mm) | 10 |
| Chamber Dimension | L 300 – 900 mm, W 90 – 600 mm, H 140 – 300 mm |
| Vacuum Pump Rate (m3/h) | 8 - 40 |
| External Dimension | L 480 – 1000 mm, W 350 – 700 mm, H 350 – 600 mm |
| Net Weight (kg) | 30 - 260 |

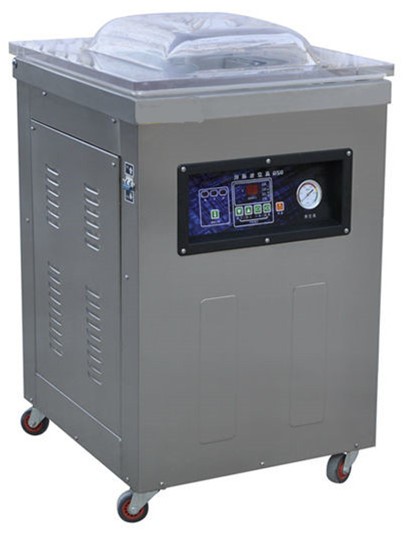

Features:
1. Easy to connect with production line
2. Vacuum packaging process automatically
3. Visible for vacuum packaging process
4. Optional bottom plate inside and shape forming parts
5. Optional gas charging function
6. Various vacuum package data saved for selecting easily
7. Easy operating
Applications: tea, coffee, foodstuff, liquid products, electric products.
| Model | Single Chamber Vacuum package machine |
|---|---|
| Voltage (V/Hz) | 110 V/60 Hz, 220 V/50Hz, 380 V/50Hz |
| Motor Power (W) | 900 |
| Sealing Power (W) | 500 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| Sealing Bar Number | 2 |
| Sealing Length (mm) | 200 - 500 |
| Sealing Width (mm) | 10 |
| Chamber Dimension | L 300 – 600 mm, W 400 – 600 mm, H 140 – 300 mm |
| Vacuum Pump Rate (m3/h) | 20 |
| External Dimension | L 500 – 600 mm, W 550 – 700 mm, H 500 – 1000 mm |

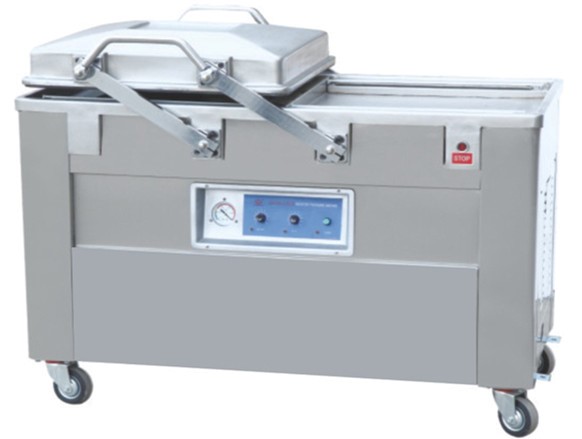

Features:
1. Efficiency increased
2. Workable for packaging of middle and small sizes products continuous
3. Optional function to move covers easily.
4. Optional bottom plate inside and shape forming parts
5. Optional dust filter
6. Optional gas charging function
7. Customized depth of chamber
8. Customized vacuum pump volume
| Model | Double Chambers Vacuum package machine |
|---|---|
| Voltage (V/Hz) | 380 V/50Hz |
| Motor Power (W) | 2200 |
| Sealing Power (W) | 1500 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| Sealing Bar Number | 10 |
| Chamber Dimension | L 800 mm W 630 mm H 195 mm |
| Chamber material | SUS304 |
| Vacuum Pump Rate (m³/h) | 63 |
| External Dimensions | L 1670 mm W 850 mm H 1000 mm |
| Weight(kg) | 370 |

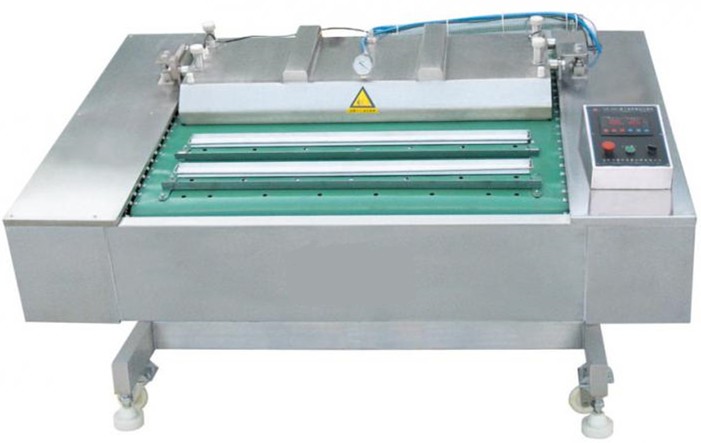

Features:
1. High Efficiency
2. Easy to connect with conveyor
3. Adjustable for platform slant for liquid products br>package
4. Workable for packaging of middle and small sizes products continuous
5. Optional package settings on PLC screen
6. Stainless steel and easy to clean
7. Water cooling to protect seal bar
| Model | Auto Continuous Vacuum type |
|---|---|
| Voltage (V/Hz) | 220 V/50Hz, 380 V/50Hz |
| Motor Power (W) | 920 |
| Sealing Power (W) | 1500 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| Sealing Bar Number | 1 |
| Sealing Length (mm) | 1020 |
| Sealing Width (mm) | 10 |
| Chamber Dimension | L 1080 mm W 500 mm H 100 mm |
| Package ability | 4 - 8 times/min |
| Cooling type | Water |
| External Dimensions | L 1580 mm W 1770 mm H 1100 mm |
| Weight(kg) | 660 |

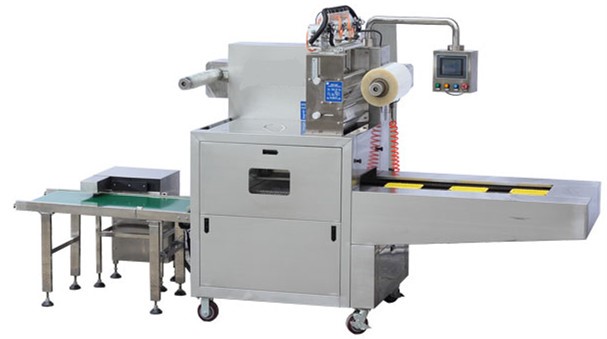

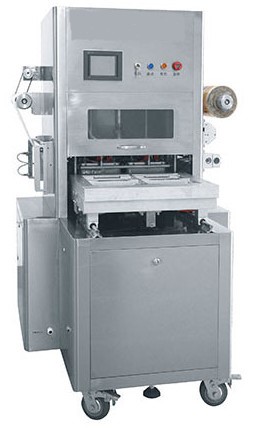

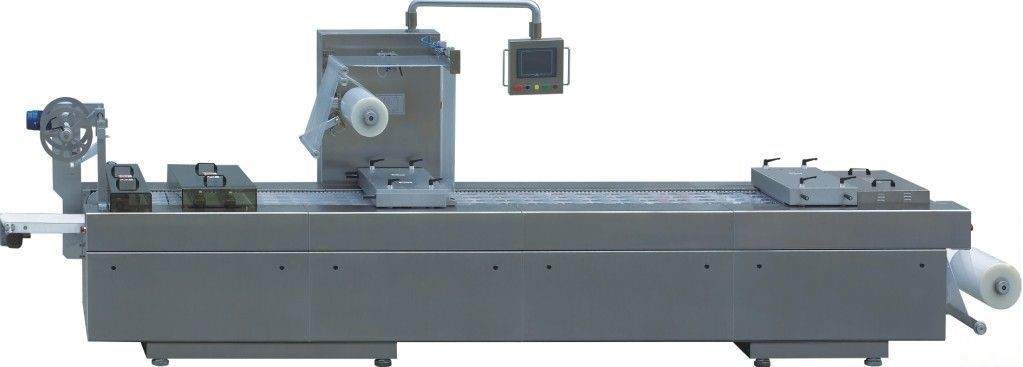

Features:
1. Vacuum and MAP (Modified Atmosphere Packaging) together
2. Easy operating and packaging proceed automatically
3. Workable for packaging of middle and small sizes products continuous
4. Adjustable for vacuum, gas charging, seal, print and cut film settings
5. Running fault indicating
6. Customized package shape
7. Suitable for different Barrier materials
| Model | Semi-automatic Vacuum and MAP tray type |
|---|---|
| Voltage (V/Hz) | 380 V/50 Hz(three-phase alternating current) |
| Total Power(KW) | 3.7 |
| Sealing Power (W)(KW) | 2 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| Gas charging | N2 or N2+CO2 |
| Vacuum Pump Rate (m3/h) | 63 |
| Package ability | 10 |
| Chamber Dimension | L 1080 mm W 500 mm H 100 mm |
| Package ability | Vacuum, gas charging and seal: 3 times/min |
| Cooling type | Air cooling |
| External Dimensions | L 1360 mm W 840 mm H 1475 mm |
| Weight(kg) | 650 |
Features:
1. Vacuum and MAP (Modified Atmosphere Packaging) together
2. Package process automatically and high efficiency
3. Adjustable for vacuum, gas charging, seal, print and cut film settings
4. Strong seal and perfect packing result
5. Adjustable for vacuum, gas charging, seal, print and cut film settings on PLC screen
6. Running fault indicating
7. Customized package shape
8. Suitable for different Barrier materials
| Model | Automatic Vacuum and MAP tray type |
|---|---|
| Voltage (V/Hz) | 380 V/50 Hz(three-phase alternating current) |
| Total Power(KW) | 4.43 |
| Sealing Power (W)(KW) | 2 |
| Ultimate Vacuum Pressure (Kpa) | 1 |
| Gas charging | N2 or N2+CO2 |
| Vacuum Pump Rate (m3/h) | 63 |
| Package ability | Vacuum, gas charging and seal: 5 times/min |
| Cooling type | Air cooling |
| External Dimensions | L 2200 mm W 940 mm H 1750 mm |
| Weight(kg) | 670 |
Features:
1. Thermoform, Vacuum and MAP (Modified Atmosphere Packaging) together
2. Easy operating and all settings on PLA screen
3. Automatic running for all process of thermoforming, filling, vacuum, inert gas charging, lid film seal, film and tray cut
4. High efficiency and save cost
5. Customized thermoform depth and package shape
6. Suitable for soft or rigid tray packaging
7. Strong seal and accurate film and tray cut
8. Running fault indicating
9. Suitable for different Barrier materials
| Model | Automatic thermoforming Vacuum and MAP type |
|---|---|
| Voltage (V/Hz) | 380 V/50Hz |
| Sealing Power (W) | 2000 |
| Gas Pressure (Kpa) | 500 - 600 |
| Chamber Dimension | L 200 - 400 mm W 100 - 600 mm |
| Thermoforming depth | ≤80 mm |
| Vacuum Pump Rate (m3/h) | 100 or 160 |
| Package ability | 4 - 6 times/min |
| Cooling type | Water |
| Cooling type | Water |
| Stainless steel | SUS304 |
| Lid film width | 300 - 490 mm |
| Bottom film width | 320 - 520 mm |
| External Dimensions | L 5000 mm W 950 mm H 2000 mm |
| Weight(kg) | 1500 |
Smaller L automatic shrink wrap machine for 4 x 4 cm products
For special size products, very small, thin, or much longer, wider or higher products, it is difficult to use shrink machine of common size to pack.
With excellent ability of design and innovation, we can produce customized shrink wrap machine with special functions for special package application:
Intermittent Motion Side sealer of cross seal behind side seal for very long, wide and high products Double Side sealer for very wide products;
Vertical L automatic sealer for high products;
Automatic Centerfold machine before sealer;
Kissing function for small size and thin size product;
Very long shrink tunnel with visible or non-visible window;
Drive conveyor line for product input;
Wind blowing function;
High speed dispenser.
简体中文
